Scratchbuilding Engines 101

- - - - -

  • This topic is locked This topic is locked
20 replies to this topic

#1
Da Goff Rokker

Da Goff Rokker

    Shoota Boy

  • Boyz
  • 261 posts
  • Gender:Male
  • Location:São Paulo, Brazil
  • Army Name:Da League of Ekstraurdinary Orks
Well, during the making of my Micro Fighta Bomma (link to the original post here) I needed a big hulking engine for it, and found nothing that could be used in my (very thin) bitz box, so I decided to make my own Soopa-Charger-V6 engine.

I think that it is very easy to assemble, and if not something spetacular, it could be easily used in a buggy or bike with very few modifications. Now for the steps:

1) For this you will need plasticard of 2 different thickness (in this example I´ve used 1.5mm and 0.5mm), pieces of sprue (both the chunkier and the more thin ones), rivvitz and any other gubbinz that you think will look nice... :biggrin

2) You start by cutting small retangles from the thicker plasticard. The exact size will depend on the final size of the engine you want, so a little bit planning is needed at this stage. Around 8 pieces will work fine.

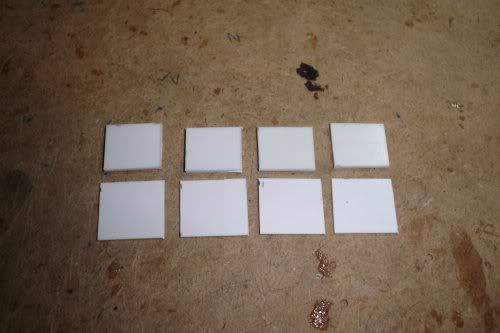

3) Now cut another 8 rectangles from the thinner plasticard, but adding 2mm both on its lenght and width. You should have something like this:

Posted Image

4) Cut other 2 rectangles out of this thinner plasticard, but with the same size as the smaller ones, to act as a finishing of the engine top. Take extra care to make the cuts as precise as you could!

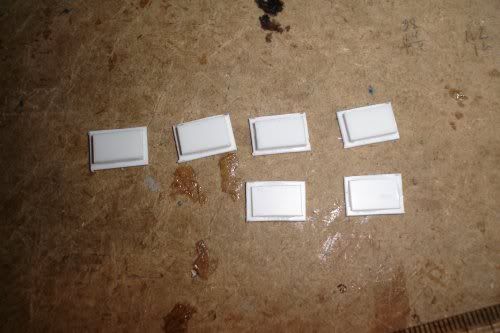

5) Now glue each smaller thick plasticard piece to the center of each biggest thin plasticard one, like this (I´ve used different pieces for this pic). Use plenty of glue on this operation:

Posted Image

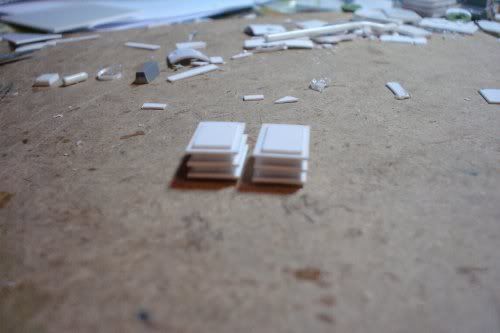

6) You now has 4 sets of pieces. After waiting the glue to dry (this is important!), glue each of those pieces on top of each other, making 2 "stacks" of 3 to 4 piled pieces. Take care to align then properly, and wait for the glue to fully dry. Glue those 2 smaller thin pieces of Step 4 on top of each stack. You should have something like this:

Posted Image

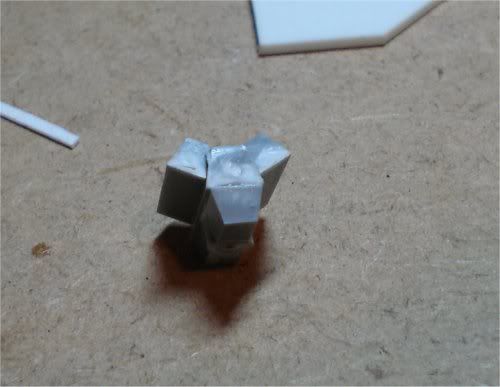

7) Now to make the engine block. Take some leftover sprue, both the thicker and the thinner ones. Cut 2 pieces from each one, slightly smaller than the width of the smaller rectangles, and glue them in the way the pic shows:

Posted Image

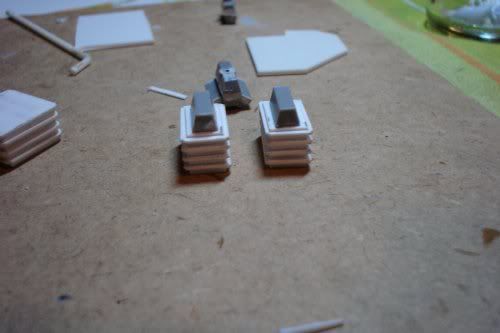

8) Cut 2 other slices of the smaller sprue and glue then to the top of the stacks. Now you should have something like this:

Posted Image

9) Glue the stacks on the sides of the engine block (the part that used the smaller sprue), add some rivvitz and gubbinz and you are done!

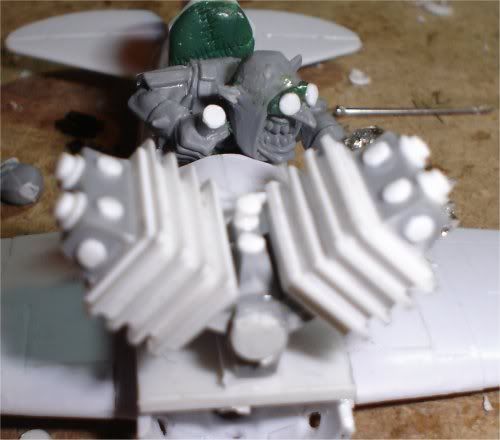

Posted Image

The final design could be changed to your needs, you coud make V6 engines, W8 engines, single block ones, etc...

Hope this could be of some help to someone! And if you guys need any clarifications or doesn´t understand any of the steps, just tell me and I will try to make it clear!

Cheers! :cheers
